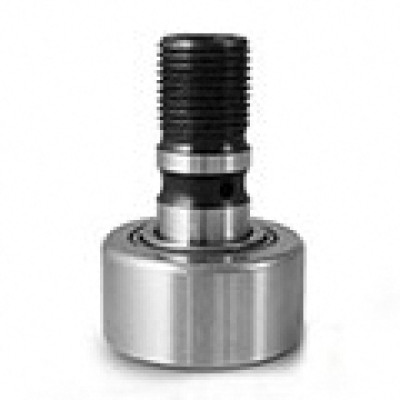

NUKR62
| Part Number | NUKR62 |
Brand: LILY  | |
Equivalent: Schaeffler (INA) |
| System of Measurement | Metric |
| For Load Direction | Radial |
| Roller Shape | Crowned |
| Internal Construction | Double Row |
| Type | Heavy Duty Stud |
| Mounting Method | Hex Hole |
| Seal Type | Sealed |
| Roller Material | Bearing Steel |
| Roller Dia | 62 mm |
| Roller Width | 28 mm |
| Stud Dia | 24 mm |
| Stud Length | 49.5 mm |
| Threads | M24x1 |
| Minimum Thread Length | 25 mm |
| Shoulder Dia | 38 mm |
| Shoulder Length | 1.3 mm |
| Width of Flats | 14 mm |
| rmin | 1 mm |
| Overall Length | 80 mm |
| Lubrication Fitting Size | 4 mm |
| Max Speed | 2600 1/min |
| Static Radial Load | 54000 N |
| Dynamic Radial Load | 40000 N |
| Fatigue Load Limit Radial | 7400 N |
| Tightening Torque Nut | 220 Nm |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight (g) | 795 |
})
INTERCHANGE
The LILY bearing part series NUKR62 is a potential replacement for these common bearing part numbers.
LILY
INA CROWNED OUTER RING NUKR
INA CYLINDRICAL OUTER RING NUKR..X
IKO NUMBER
MCGILL CROWNED OUTER RING MCFD
MCGILL CYLINDRICAL OUTER RING MCFD..X
LNUKR62
NUKR 62
NUKR 62 X
NUCF24R
MCFD 62
MCFD 62 X
