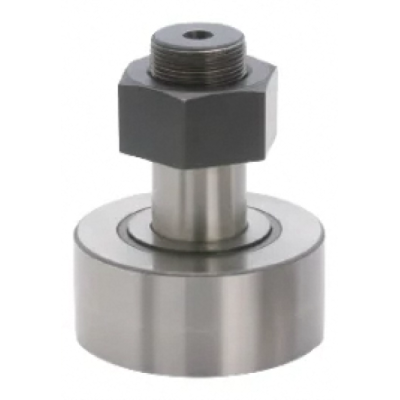

NUCF18R
| Part Number | NUCF18R |
| System of Measurement | Metric |
| For Load Direction | Radial |
| Roller Shape | Crowned |
| Internal Construction | Double Row |
| Type | Heavy Duty Stud |
| Mounting Method | Screwdriver Slot |
| Seal Type | Shielded |
| Roller Material | Bearing Steel |
| Roller Dia | 40 mm |
| Roller Width | 20 mm |
| Stud Dia | 18 mm |
| Stud Length | 36.5 mm |
| Thread | M18x1.5 |
| Minimum Thread Length | 19 mm |
| Shoulder Dia | 22 mm |
| Shoulder Length | 0.8 mm |
| Overall Length | 58.1 mm |
| Maximum Tightening Torque | 86.2 Nm |
| Static Radial Load | 30900 N |
| Dynamic Radial Load | 25200 N |
| RoHS | Compliant |
| REACH | Compliant |
| Mass (g) | 244 g |
})
