NKI6/12-TV-XL

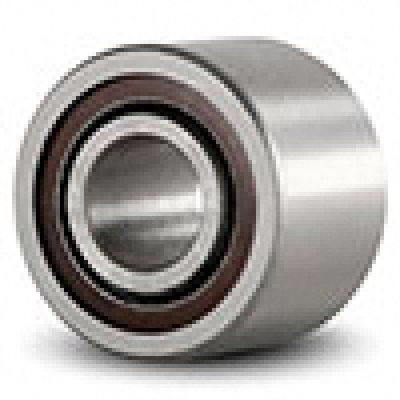

NKI6/12-TV-XL Heavy Duty Needle Roller Bearings (Machined)
Part Number NKI6/12-TV-XL
Brand: LILY
|
Equivalent: Schaeffler (INA)
System of Measurement Metric
Bearing Type Roller
Roller Bearing Type Needle
For Load Direction Radial
Construction Single Row
Seal Type Open
Inner Ring Yes
Series With Inner Ring
Bore Dia 6 mm
Bore Dia Tolerance -0.008mm to 0
Outer Dia 16 mm
Outer Dia Tolerance -0.008mm to 0
Width 12 mm
Width Tolerance -0.12mm to 0
Chamfer Dimension 0.3 mm
F 9 mm
Ring Material Steel
Cage Material PA66
Roller Material Steel
Dynamic Radial Load 1148 lbf
Static Radial Load 1125 lbf
Max Speed (X1000 rpm) 31
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -20 to 110 °C
RoHS Compliant
Weight 13.5 g
NKI6/12-TV-XL Heavy Duty Needle Roller Bearings (Machined) cad drawing

Request a Quote

*
*
*
Allow file formats (gif、jpeg、jpg、png、pdf、txt、doc、xls、xlsx、docx)
INTERCHANGE
The LILY bearing part series NKI6/12-TV-XL is a potential replacement for these common bearing part numbers.
LILY
INA WITHOUT INNER RING NK
INA WITH INNER RING NKI
IKO WITHOUT INNER RING TAF
IKO WITH INNER RING TAFI
SKF WITHOUT INNER RING NK
SKF WITH INNER RING NKI
FAG WITHOUT INNER RING NK
FAG WITH INNER RING NKJ
LNKI6/12-TV-XL
NK 9/12 TN
NKI 6/12 TN
TAF 91612
TAFI 61612
NK 9/12 TN
NKI 6/12 TN
NK 9/12
NKJ 6/12
