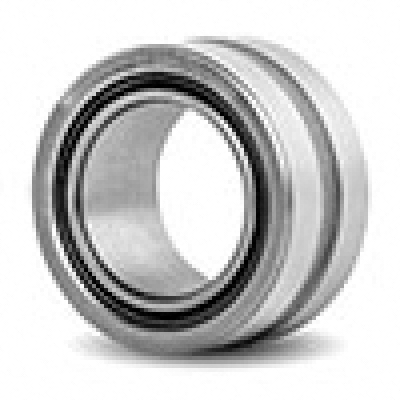

NKI50/35-XL
Part Number | NKI50/35-XL |
Brand: LILY | |
Equivalent: Schaeffler (INA) |
System of Measurement | Metric |
Bearing Type | Roller |
Roller Bearing Type | Needle |
For Load Direction | Radial |
Construction | Single Row |
Seal Type | Open |
Inner Ring | Yes |
Series | With Inner Ring |
Bore Dia | 50 mm |
Bore Dia Tolerance | -0.012mm to 0 |
Outer Dia | 68 mm |
Outer Dia Tolerance | -0.013mm to 0 |
Width | 35 mm |
Width Tolerance | -0.12mm to 0 |
Chamfer Dimension | 0.6 mm |
F | 55 mm |
Ring Material | Steel |
Cage Material | Steel |
Roller Material | Steel |
Dynamic Radial Load | 13500 lbf |
Static Radial Load | 26550 lbf |
Max Speed (X1000 rpm) | 8.4 |
Lubrication | Required |
Shaft Mount Type | Press Fit |
Temperature Range | -20 to 110 °C |
RoHS | Compliant |
Weight | 379 g |
INTERCHANGE
The LILY bearing part series NKI50/35-XL is a potential replacement for these common bearing part numbers.
LILY
INA WITHOUT INNER RING NK
INA WITH INNER RING NKI
IKO WITHOUT INNER RING TAF
IKO WITH INNER RING TAFI
SKF WITHOUT INNER RING NK
SKF WITH INNER RING NKI
FAG WITHOUT INNER RING NK
FAG WITH INNER RING NKJ
LNKI50/35-XL
NK 55/35
NKI 50/35
TAF 556835
TAFI 506835
NK 55/35
NKI 50/35
NK 55/35 A
NKJ 50/35 A
