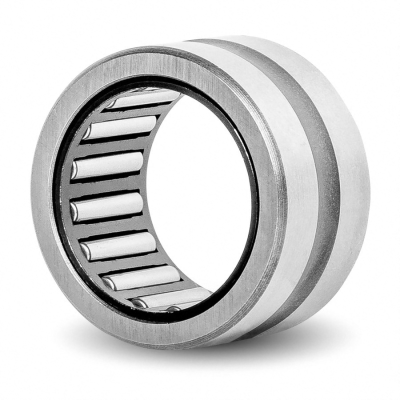

NK80/35-XL
| Part Number | NK80/35-XL |
Brand: LILY  | |
Equivalent: Schaeffler (INA) |
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Needle |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |
| Inner Ring | No |
| Series | Without Inner Ring |
| Bore Dia | 80 mm |
| Bore Dia Tolerance | 0.03mm to 0.049mm |
| Outer Dia | 95 mm |
| Outer Dia Tolerance | -0.015mm to 0 |
| Width | 35 mm |
| Width Tolerance | -0.15mm to 0 |
| Chamfer Dimension | 1mm |
| Ring Material | Steel |
| Cage Material | Steel |
| Roller Material | Steel |
| Dynamic Radial Load | 20025 lbf |
| Static Radial Load | 41400 lbf |
| Max Speed (X1000 rpm) | 5.8 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight | 425 g |
})
INTERCHANGE
The LILY bearing part series NK80/35-XL is a potential replacement for these common bearing part numbers.
LILY
INA WITHOUT INNER RING NK
INA WITH INNER RING NKI
IKO WITHOUT INNER RING TAF
IKO WITH INNER RING TAFI
SKF WITHOUT INNER RING NK
SKF WITH INNER RING NKI
FAG WITHOUT INNER RING NK
FAG WITH INNER RING NKJ
LNK80/35-XL
NK 80/35
NKI 70/35
TAF 809535
TAFI 709535
NK 80/35
NKI 70/35
NK 80/35 ASR 1
NKJ 70/35 A
