NK5/10-TV-XL

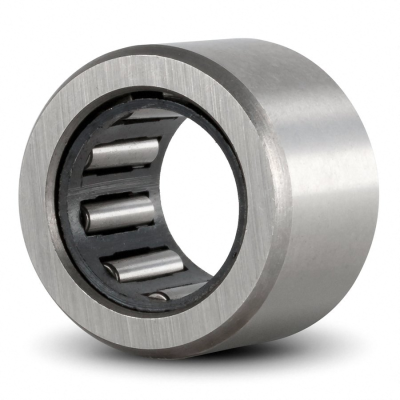

NK5/10-TV-XL Heavy Duty Needle Roller Bearings (Machined)
Part Number NK5/10-TV-XL
Brand: LILY
|
Equivalent: Schaeffler (INA)
System of Measurement Metric
Bearing Type Roller
Roller Bearing Type Needle
For Load Direction Radial
Construction Single Row
Seal Type Open
Inner Ring No
Series Without Inner Ring
Bore Dia 5 mm
Bore Dia Tolerance 0.01mm to 0.018mm
Outer Dia 10 mm
Outer Dia Tolerance -0.008mm to 0
Width 10 mm
Width Tolerance -0.12mm to 0
Chamfer Dimension 0.15mm
Ring Material Steel
Cage Material PA66
Roller Material Steel
Dynamic Radial Load 596 lbf
Static Radial Load 432 lbf
Max Speed (X1000 rpm) 39
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -20 to 110 °C
RoHS Compliant
Weight 3.1 g
NK5/10-TV-XL Heavy Duty Needle Roller Bearings (Machined) cad drawing

Request a Quote

*
*
*
Allow file formats (gif、jpeg、jpg、png、pdf、txt、doc、xls、xlsx、docx)
INTERCHANGE
The LILY bearing part series NK5/10-TV-XL is a potential replacement for these common bearing part numbers.
LILY
INA WITHOUT INNER RING NK
IKO WITHOUT INNER RING TAF
SKF WITHOUT INNER RING NK
FAG WITHOUT INNER RING NK
LNK5/10-TV-XL
NK 5/10 TN
TAF 51010
NK 5/10 TN
NK 5/10 B.TN
