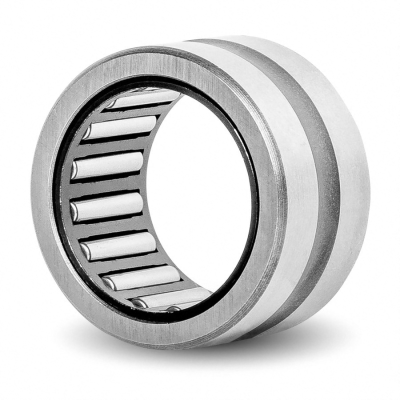

NK30/30-TV-XL
| Part Number | NK30/30-TV-XL |
Brand: LILY  | |
Equivalent: Schaeffler (INA) |
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Needle |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |
| Inner Ring | No |
| Series | Without Inner Ring |
| Bore Dia | 30 mm |
| Bore Dia Tolerance | 0.02mm to 0.033mm |
| Outer Dia | 40 mm |
| Outer Dia Tolerance | -0.011mm to 0 |
| Width | 30 mm |
| Width Tolerance | -0.12mm to 0 |
| Chamfer Dimension | 0.3mm |
| Ring Material | Steel |
| Cage Material | PA66 |
| Roller Material | Steel |
| Dynamic Radial Load | 9450 lbf |
| Static Radial Load | 15525 lbf |
| Max Speed (X1000 rpm) | 14.8 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight | 92.4 g |
})
INTERCHANGE
The LILY bearing part series NK30/30-TV-XL is a potential replacement for these common bearing part numbers.
LILY
INA WITHOUT INNER RING NK
IKO WITHOUT INNER RING TAF
SKF WITHOUT INNER RING NK
FAG WITHOUT INNER RING NK
LNK30/30-TV-XL
NK 30/30
TAF 304030
NK 30/30
NK 30/30 A
