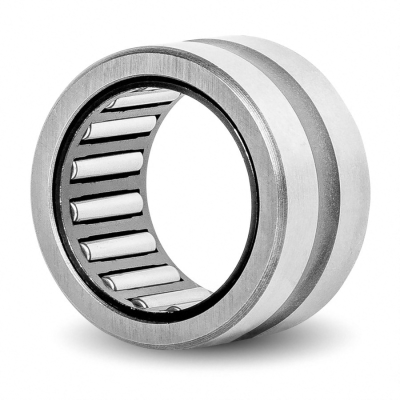

NK29/20-TV-XL
| Part Number | NK29/20-TV-XL |
Brand: LILY  | |
Equivalent: Schaeffler (INA) |
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Needle |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |
| Inner Ring | No |
| Series | Without Inner Ring |
| Bore Dia | 29 mm |
| Bore Dia Tolerance | 0.02mm to 0.033mm |
| Outer Dia | 38 mm |
| Outer Dia Tolerance | -0.011mm to 0 |
| Width | 20 mm |
| Width Tolerance | -0.12mm to 0 |
| Chamfer Dimension | 0.3mm |
| Ring Material | Steel |
| Cage Material | PA66 |
| Roller Material | Steel |
| Dynamic Radial Load | 6188 lbf |
| Static Radial Load | 8775 lbf |
| Max Speed (X1000 rpm) | 15.3 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight | 50 g |
})
INTERCHANGE
The LILY bearing part series NK29/20-TV-XL is a potential replacement for these common bearing part numbers.
LILY
INA WITHOUT INNER RING NK
INA WITH INNER RING NKI
IKO WITHOUT INNER RING TAF
IKO WITH INNER RING TAFI
SKF WITHOUT INNER RING NK
SKF WITH INNER RING NKI
FAG WITHOUT INNER RING NK
FAG WITH INNER RING NKJ
LNK29/20-TV-XL
NK 29/20
NKI 25/20
TAF 293820
TAFI 253820
NK 29/20
NKI 25/20
NK 29/20 A
NKJ 25/20 A
