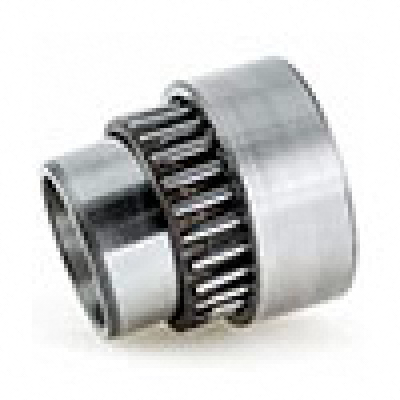

NAO17X30X13-XL
| Part Number | NAO17X30X13-XL |
Brand: LILY  | |
Equivalent: Schaeffler (INA) |
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Needle |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |
| Inner Ring | Yes |
| Series | With Inner Ring |
| Bore Dia | 17 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| Outer Dia | 30 mm |
| Outer Dia Tolerance | -0.009mm to 0 |
| Width | 13 mm |
| Width Tolerance | -0.12mm to 0 |
| Chamfer Dimension | 0.3 mm |
| E | 26 mm |
| F | 22 mm |
| Ring Material | Steel |
| Cage Material | Steel |
| Roller Material | Steel |
| Dynamic Radial Load | 2655 lbf |
| Static Radial Load | 3578 lbf |
| Max Speed (X1000 rpm) | 20.4 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight | 42 g |
})
INTERCHANGE
The LILY bearing part series NAO17X30X13-XL is a potential replacement for these common bearing part numbers.
LILY
INA WITHOUT INNER RING NK
INA WITH INNER RING NKI
IKO WITHOUT INNER RING TAF
IKO WITH INNER RING TAFI
SKF WITHOUT INNER RING NK
SKF WITH INNER RING NKI
FAG WITHOUT INNER RING NK
FAG WITH INNER RING NKJ
LNAO17X30X13-XL
NAO 17×30×13
RNAO 22×30×13
NAF 173013
RNAF 223013
NAO 17×30×13
RNAO 22×30×13
NAO 17×30×13
RNAO 22×30×13
