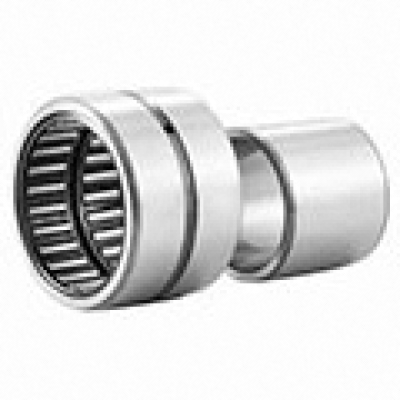

NA6919-ZW-XL
| Part Number | NA6919-ZW-XL |
Brand: LILY  | |
Equivalent: Schaeffler (INA) |
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Needle |
| For Load Direction | Radial |
| Construction | Double Row |
| Seal Type | Open |
| Inner Ring | Yes |
| Series | With Inner Ring |
| Bore Dia | 95 mm |
| Bore Dia Tolerance | -0.02mm to 0 |
| Outer Dia | 130 mm |
| Outer Dia Tolerance | -0.018mm to 0 |
| Width | 63 mm |
| Width Tolerance | -0.2mm to 0 |
| Chamfer Dimension | 1.1 mm |
| F | 110 mm |
| Ring Material | Steel |
| Cage Material | Steel |
| Roller Material | Steel |
| Dynamic Radial Load | 44325 lbf |
| Static Radial Load | 99000 lbf |
| Max Speed (X1000 rpm) | 4.2 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight | 2500 g |
})
INTERCHANGE
The LILY bearing part series NA6919-ZW-XL is a potential replacement for these common bearing part numbers.
LILY
INA WITHOUT INNER RING NK
INA WITH INNER RING NKI
IKO WITHOUT INNER RING TAF
IKO WITH INNER RING TAFI
SKF WITHOUT INNER RING NK
SKF WITH INNER RING NKI
FAG WITHOUT INNER RING NK
FAG WITH INNER RING NKJ
LNA6919-ZW-XL
NA 6919
RNA 6919
NA 6919
RNA 6919
NA 6919
RNA 6919
NA 6919
RNA 6919
