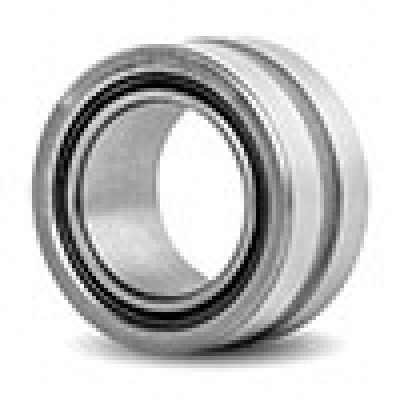

NA4924-XL
| Part Number | NA4924-XL |
Brand: LILY  | |
Equivalent: Schaeffler (INA) |
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Needle |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |
| Inner Ring | Yes |
| Series | With Inner Ring |
| Bore Dia | 120 mm |
| Bore Dia Tolerance | -0.02mm to 0 |
| Outer Dia | 165 mm |
| Outer Dia Tolerance | -0.025mm to 0 |
| Width | 45 mm |
| Width Tolerance | -0.2mm to 0 |
| Chamfer Dimension | 1.1 mm |
| F | 135 mm |
| Ring Material | Steel |
| Cage Material | Steel |
| Roller Material | Steel |
| Dynamic Radial Load | 46125 lbf |
| Static Radial Load | 87750 lbf |
| Max Speed (X1000 rpm) | 3.4 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight | 2860 g |
})
INTERCHANGE
The LILY bearing part series NA4924-XL is a potential replacement for these common bearing part numbers.
LILY
INA WITHOUT INNER RING NK
INA WITH INNER RING NKI
IKO WITHOUT INNER RING TAF
IKO WITH INNER RING TAFI
SKF WITHOUT INNER RING NK
SKF WITH INNER RING NKI
FAG WITHOUT INNER RING NK
FAG WITH INNER RING NKJ
LNA4924-XL
NA 4924
RNA 4924
NA 4924
RNA 4924
NA 4924
RNA 4924
NA 4924
RNA 4924
