NA4917-XL

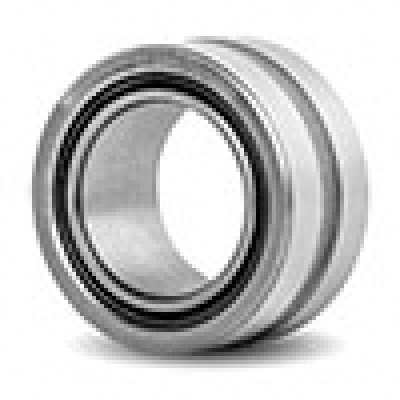

NA4917-XL Heavy Duty Needle Roller Bearings (Machined)
Part Number NA4917-XL
Brand: LILY
|
Equivalent: Schaeffler (INA)
System of Measurement Metric
Bearing Type Roller
Roller Bearing Type Needle
For Load Direction Radial
Construction Single Row
Seal Type Open
Inner Ring Yes
Series With Inner Ring
Bore Dia 85 mm
Bore Dia Tolerance -0.02mm to 0
Outer Dia 120 mm
Outer Dia Tolerance -0.015mm to 0
Width 35 mm
Width Tolerance -0.2mm to 0
Chamfer Dimension 1.1 mm
F 100 mm
Ring Material Steel
Cage Material Steel
Roller Material Steel
Dynamic Radial Load 28125 lbf
Static Radial Load 53325 lbf
Max Speed (X1000 rpm) 4.6
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -20 to 110 °C
RoHS Compliant
Weight 1250 g
NA4917-XL Heavy Duty Needle Roller Bearings (Machined) cad drawing

Request a Quote

*
*
*
Allow file formats (gif、jpeg、jpg、png、pdf、txt、doc、xls、xlsx、docx)
INTERCHANGE
The LILY bearing part series NA4917-XL is a potential replacement for these common bearing part numbers.
LILY
INA WITHOUT INNER RING NK
INA WITH INNER RING NKI
IKO WITHOUT INNER RING TAF
IKO WITH INNER RING TAFI
SKF WITHOUT INNER RING NK
SKF WITH INNER RING NKI
FAG WITHOUT INNER RING NK
FAG WITH INNER RING NKJ
LNA4917-XL
NA 4917
RNA 4917
NA 4917
RNA 4917
NA 4917
RNA 4917
NA 4917
RNA 4917
