NA4914-XL

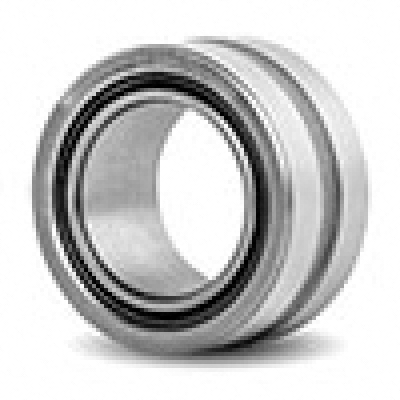

NA4914-XL Heavy Duty Needle Roller Bearings (Machined)
Part Number NA4914-XL
Brand: LILY
|
Equivalent: Schaeffler (INA)
System of Measurement Metric
Bearing Type Roller
Roller Bearing Type Needle
For Load Direction Radial
Construction Single Row
Seal Type Open
Inner Ring Yes
Series With Inner Ring
Bore Dia 70 mm
Bore Dia Tolerance -0.015mm to 0
Outer Dia 100 mm
Outer Dia Tolerance -0.015mm to 0
Width 30 mm
Width Tolerance -0.15mm to 0
Chamfer Dimension 1 mm
F 80 mm
Ring Material Steel
Cage Material Steel
Roller Material Steel
Dynamic Radial Load 21375 lbf
Static Radial Load 35100 lbf
Max Speed (X1000 rpm) 5.7
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -20 to 110 °C
RoHS Compliant
Weight 728 g
NA4914-XL Heavy Duty Needle Roller Bearings (Machined) cad drawing

Request a Quote

*
*
*
Allow file formats (gif、jpeg、jpg、png、pdf、txt、doc、xls、xlsx、docx)
INTERCHANGE
The LILY bearing part series NA4914-XL is a potential replacement for these common bearing part numbers.
LILY
INA WITHOUT INNER RING NK
INA WITH INNER RING NKI
IKO WITHOUT INNER RING TAF
IKO WITH INNER RING TAFI
SKF WITHOUT INNER RING NK
SKF WITH INNER RING NKI
FAG WITHOUT INNER RING NK
FAG WITH INNER RING NKJ
LNA4914-XL
NA 4914
RNA 4914
NA 4914
RNA 4914
NA 4914
RNA 4914
NA 4914
RNA 4914
