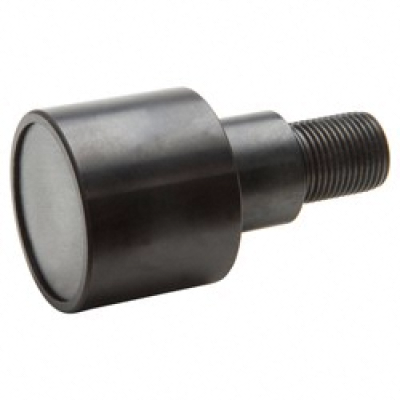

MPCR-50-E
$60.28
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
BULK INQUIRY REQUEST
YOUR INQUIRY LIST
!
Please add at least one product before submit.
QUOTE SUMMARY
| Part Number | MPCR-50-E |
Brand: LILY  |
Interchangeable With: SMITH |
| System of Measurement | Metric |
| For Load Direction | Radial |
| Roller Shape | Cylindrical |
| Internal Construction | Taper Roller Bearing |
| Type | Eccentric Stud |
| Seal Type | Sealed |
| Series | SMITH-TRAX® Metric Bearings |
| Roller Material | Bearing Steel |
| Roller Dia | 50 mm |
| Roller Width | 40 mm |
| Stud Dia | 16 mm |
| Stud Length | 50 mm |
| Threads | M16 X 2 |
| Bushing (OD) | 24 |
| Eccentricity | 1 |
| Static Radial Load | 7200 lbf |
| Dynamic Radial Load | 3825 lbf |
| Bearing Type | BB |
| RoHS | Compliant |
| REACH | Compliant |
| (B) Roller (OD) Tolerance | +0.00 -0.02 |
| (U) Eccentric Bushing Length | 18 mm |
| Dynamic Thrust Load Rating (lbs)(500 hrs 33 rpm) | 10600 lbs |
