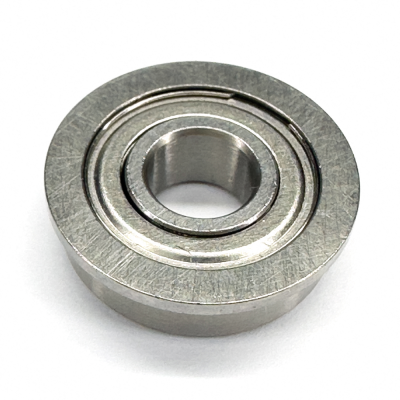

MF148zz

Metric Size Miniature Flanged Ball Bearings feature chrome steel inner and outer rings that deliver excellent hardness, wear resistance, and load-carrying capacity in a compact flanged design. The integrated flange simplifies axial positioning and secure mounting without additional hardware, making these bearings well suited for precision instruments, small motors, medical devices, and office automation equipment where space is limited and reliable performance is essential.

Metric Size Miniature Flanged Ball Bearings with metal shields provide effective protection against dust and light contaminants while allowing grease retention within the bearing cavity, making them ideal for high-speed applications where low torque and minimal friction are required. The integrated flange simplifies axial positioning and secure mounting without additional hardware, making these bearings well suited for precision instruments, small motors, medical devices, and office automation equipment where space is limited and reliable performance is essential.

Metric Size Miniature Flanged Ball Bearings feature chrome steel balls that provide excellent hardness, high load capacity, and consistent rolling performance for reliable operation across a wide range of speeds and loads. The integrated flange simplifies axial positioning and secure mounting without additional hardware, making these bearings well suited for precision instruments, small motors, medical devices, and office automation equipment where space is limited and reliable performance is essential.

What are the advantages of using chrome steel rings in miniature flanged ball bearings?

Chrome steel rings, typically manufactured from AISI 52100 bearing-grade steel, offer exceptional surface hardness of 60–64 HRC after heat treatment, ensuring outstanding wear resistance and long service life under continuous or high-cycle operating conditions. The material also delivers excellent fatigue resistance, consistent dimensional stability, and a superior raceway surface finish that minimizes friction and supports smooth, low-noise operation. Combined with reliable performance under both radial and axial loads, chrome steel rings provide an excellent balance of precision, durability, and cost-effectiveness for the majority of standard bearing applications.

What does the shielded configuration mean in Metric Size Miniature Flanged Ball Bearings?

The shielded configuration refers to the use of thin metal shields, typically made of steel, fitted on one or both sides of the bearing to partially enclose the internal components. Unlike rubber seals, metal shields do not make contact with the inner ring, which means they create a non-contact barrier that protects the bearing interior from dust and light contaminants without generating additional friction or heat during operation.

How do chrome steel balls perform under high-speed and high-load conditions?

Chrome steel balls perform exceptionally well under both high-speed and high-load conditions due to their high hardness, excellent elastic modulus, and superior fatigue resistance. The dense microstructure of AISI 52100 steel allows the balls to maintain their shape and surface integrity under repeated stress cycles, resisting spalling, pitting, and premature wear even in demanding duty cycles. At high speeds, the smooth surface finish of chrome steel balls minimizes rolling contact friction and heat generation, supporting stable operation across a wide DN value range. For most standard miniature bearing applications, chrome steel balls provide the optimal balance of speed capability, load performance, and service life.
