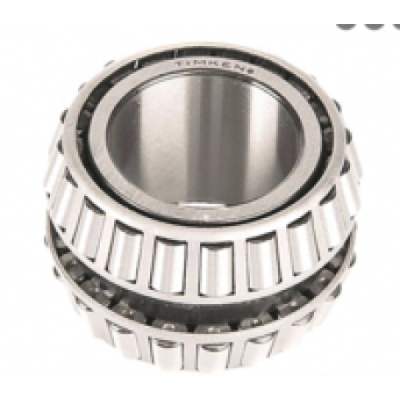

M257248DGW
| Part Number | M257248DGW |
| System of Measurement | Inch |
| Type | Cones |
| Bearing Part Number | M257248DGW-M257210 |
| Bearing Type | Roller |
| Roller Bearing Type | Tapered Roller |
| For Load Direction | Combined |
| Construction | Double Row |
| Seal Type | Open |
| Series | M257200 |
| Bore Dia | 12.004" |
| Bore Dia Tolerance | +0.002" to 0 |
| Double Cone Width | 5.0625" |
| Double Cone Width Tolerance | +0.003" to -0.01 |
| Cone Backface ToClear Radius | 0.13" |
| Cone Frontface Backing Diameter | 12.8" |
| Cone Backface Backing Diameter | 12.8" |
| Cage Cone Frontface Clearance | 0.14" |
| Static Radial Load | 481000 lbf |
| Roller Material | Chrome Steel |
| Cage Material | Steel |
| Dynamic Radial Rating(90 Million Revolutions) | 65000 lbf |
| Dynamic Radial Rating(Two Row 1 Million Revolutions) | 437000 lbf |
| Dynamic Radial Rating(1 Million Revolutions) | 251000 lbf |
| Dynamic Thrust Rating(90 Million Revolutions) | 35500 lbf |
| Dynamic Radial Rating(Two Row 90 Million Revolutions) | 113000 lbf |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | Standard (Available in C3/C4/C5) |
| RoHS | Compliant |
| REACH | Compliant |
})
