Overview |
|
| Part Number | LS7095 |
Brand: LILY  |
Interchangeable With: Schaeffler (INA) |
Characteristics |
|
| System of Measurement | Metric |
| Roller Bearing Type | Needle Roller |
| Type | Washers |
Dimensions |
|
| Bore Dia | 70 mm |
| Bore Dia Tolerance | 0.06mm to 0.360mm |
| Outer Dia | 95 mm |
| Outer Dia Tolerance | -0.612mm to -0.072mm |
| Width | 5.25 mm |
| Thickness | 5.25 mm |
Material |
|
| Material | Spring Steel |
Performance |
|
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| Weight | 120 g |

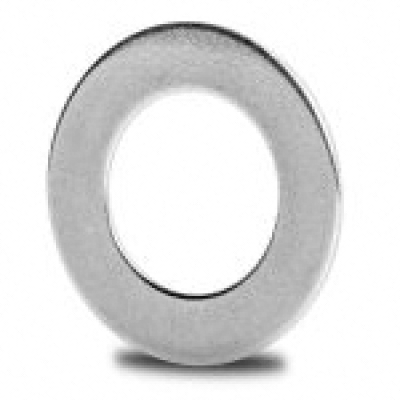

Design Features of LS7095 Bearing
LS7095 is thin, flat, and has a hardened, precision-ground surface for smooth operation and durability, supporting high axial loads. LS7095 outer dia is 95 mm. Its bore dia is 70 mm. It is often made from materials like steel or stainless steel and may include lubrication grooves for better performance.
What Benefits Can LS7095 Bearing Provide?
- Compact Design: Its thin, flat shape allows it to fit into tight axial spaces.
- High Load Capacity: It supports heavy axial loads while maintaining smooth operation.
- Durability: The hardened surface ensures long-lasting wear resistance.
- Precise Alignment: Precision-ground surfaces ensure even load distribution and reduced friction.
- Versatile Spring Steel Options: Available in materials suited for various environments, such as steel or stainless steel.
What Can LS7095 Bearing Be Used for?
- Automotive Gearboxes: To support gears and handle axial loads in compact spaces.
- Industrial Machinery: In machines that require smooth axial movement under high loads.
- Aerospace Components: For lightweight applications where efficient load handling is crucial.
- Construction Equipment: In pivot points and other load-bearing areas.
- Power Tools: To reduce friction and wear in rotating components.
