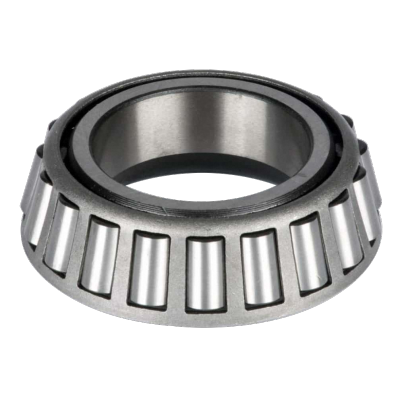

LM67043
| Part Number | LM67043 |
Brand: LILY  | |
Equivalent: Timken |
| System of Measurement | Inch |
| Type | Cones |
| Bearing Type | Roller |
| Roller Bearing Type | Tapered Roller |
| For Load Direction | Combined |
| Construction | Single Row |
| Seal Type | Open |
| Series | LM67000 |
| Bore Dia | 1.125" |
| Bore Dia Tolerance | +0.005" to 0 |
| Cone Width | 0.66" |
| Cone Width Tolerance | +0.003" to -0.01 |
| Cone Frontface Backing Diameter | 1.38" |
| Cone Backface Backing Diameter | 1.63" |
| Cage Cone Frontface Clearance | 0.05" |
| Cage Cone Backface Clearance | 0.02" |
| Ring Material | Chrome Steel |
| Cage Material | Steel |
| Static Radial Load | 10000 lbf |
| Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) | 14300 lbf |
| Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) | 3700 lbf |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | Standard (Available in C3/C4/C5) |
| RoHS | Compliant |
| REACH | Compliant |
})
