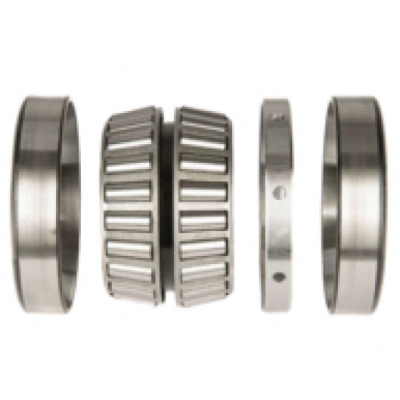

LM278848D-LM278810
Part Number | LM278848D-LM278810 |
System of Measurement | Inch |
Type | Bearing |
Cone Part Number | LM278848D |
Cup Part Number | LM278810 |
Bearing Type | Roller |
Roller Bearing Type | Tapered Roller |
For Load Direction | Combined |
Construction | Double Row |
Seal Type | Open |
Cups Type | Standard |
Series | LM278800 |
Bore Dia | 23.0625" |
Bore Dia Tolerance | +0.002" to 0 |
Outer Dia | 30.375" |
Outer Dia Tolerance | +0.003" to 0 |
Double Cone Width | 9.0625" |
Double Cone Width Tolerance | +0.003" to -0.01 |
Cup Width | 3.8125" |
Cup Width Tolerance | +0.002" to -0.01 |
Bearing Width Across Cups | 9.0624" |
Bearing Width Across Cups Tolerance | +0.015" to -0.015" |
Cone Backface ToClear Radius | 0.25" |
Cup Backface ToClear Radius | 0.25" |
Cup Frontface Backing Diameter | 24.25" |
Cup Backface Backing Diameter | 28.58" |
Dynamic Radial Load | 1290000 lbf |
Ring Material | Chrome Steel |
Roller Material | Chrome Steel |
Cage Material | Pin-Type |
Dynamic Radial Rating(One Row 90 Million Revolutions) | 192000 lbf |
Dynamic Thrust Rating(90 Million Revolutions) | 109000 lbf |
Dynamic Radial Rating(Two Row 90 Million Revolutions) | 334000 lbf |
Lubrication | Required |
Temperature Range | -30° to 110 °C |
ABEC Rating | ABEC-1 |
Radial Clearance | Standard (Available in C3/C4/C5) |
RoHS | Compliant |
REACH | Compliant |
Weight | 630.10 lb |
