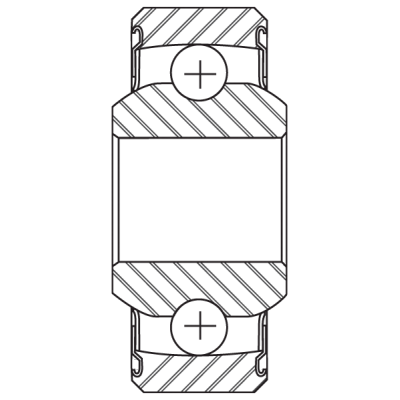

KSP10

Name: KSP10 KSP-, KSP-A / MKSP-, MKSP-A
Brand: LILY

$215.00 /Each

Bulk orders will be discounted, please contact our sales for a bulk quote.

We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.

Complete the inquiry form, and we'll provide you with the most suitable solution.

Submit your volume requirements, and we'll provide a tailored quote for your scale.

Part Number	KSP10
Standard Reference	MS27645-10
System of Measurement	Inch
Bore Dia	0.625"
Bore Dia Tolerance	-0.0005" to 0"
Outer Dia	1.9375"
Outer Dia Tolerance	-0.005" to 0"
Ring Width Outer Height	0.625"
Ring Width Outer Height Tolerance	-0.005" to 0"
Ring Width Inner Width	0.813"
Ring Width Inner Width Tolerance	-0.005" to 0"
Ball Complement No	14
Ball Complement Dia	0.2813"
Ring Shoulder Outer	1.647"
Ring Shoulder Inner	0.925"
Ring Chamfer Outer	0.044"
Ring Chamfer Outer Tolerance	0" to 0.015"
Ring Chamfer Inner	0.015"
Ring Chamfer Inner Tolerance	0" to 0.015"
Radial Internal Clearance	0" to 0.001"
Static Radial Load	5320 lbf
Static Thrust Load	600 lbf
Dynamic Radial Ring Inner Load	4980 lbf
Dynamic Radial Ring Outer Load	4360 lbf
Max Starting Torque	6 oz-in
Weight	0.37 lbs
