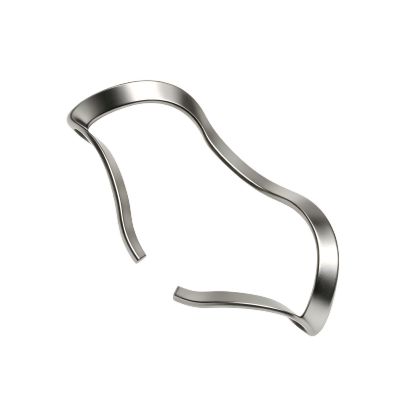

9714K191
Per Pack of 10
Bulk orders will be discounted, please contact our sales for a bulk quote.We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | JHBEKBJB |
| Spring Type | Disc |
| Height | 0.025" |
| OD | 0.187" |
| OD Tolerance | -0.01" to 0.01" |
| ID | 0.096" |
| ID Tolerance | -0.005" to 0.005" |
| Compressed Height @ Working Load | 0.022" |
| Deflection @ Working Load | 0.003" |
| Material | Steel |
| Disc Spring Type | Wave |
| Working Load | 7 lbf |
| Thickness | 0.005" |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
| DFARS | Specialty Metals COTS-Exempt |
| Country of Origin | China |
| USMCA Qualifying | No |
NOTE：All other trademarks are the property of their respective owners.
All other trademarks mentioned herein are used for the purpose of compatibility description and product identification only. Lily Bearing is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.
The JHBEKBJB springs are engineered to deliver precise axial force within minimal operating heights. Featuring a continuous, closed-loop sinusoidal design, these disc springs provide a balanced, 360-degree distribution of pressure. This makes the JHBEKBJB an ideal alternative to bulky coil springs, offering equivalent load capacities at up to 50% less axial space, ensuring a more streamlined and efficient assembly.
Key Technical Advantages of JHBEKBJB springs
- 360° Balanced Preload: The uninterrupted circular geometry ensures uniform contact across the entire mating surface, eliminating component tilting or uneven wear.
- Space Optimization: Specifically designed for low-profile envelopes, allowing for significant reduction in the overall size and weight of housings.
- Vibration & Noise Dampening: By maintaining constant tension, these wave disc springs effectively absorb harmonic vibrations and compensate for thermal expansion in rotating systems.
- High Load Consistency: Stamped from premium spring-tempered alloys to ensure a predictable spring rate and high fatigue resistance over millions of cycles.
What Are JHBEKBJB springs Used For?
- Electric Motors: Maintaining consistent bearing preload to eliminate axial play and reduce operational decibels.
- Mechanical Seals: Sustaining even face pressure for reliable sealing in pumps and fluid systems.
- Valves & Actuators: Providing compact return force and stabilizing internal components against flow-induced vibration.
- Precision Fasteners: Ensuring bolt tension and preventing loosening in high-vibration industrial environments.
