JHBDKEEB
Per Pack of 3
Bulk orders will be discounted, please contact our sales for a bulk quote.We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | JHBDKEEB |
| System of Measurement | Inch |
| Spring Type | Disc |
| Height | 0.116" |
| OD | 1.063" |
| ID | 0.531" |
| Compressed Height @ Working Load | 0.103" |
| Deflection @ Working Load | 0.013" |
| Material | 17-7 PH Stainless Steel |
| Disc Spring Type | Conical |
| For Shaft Diameter | 17/32" |
| Working Load | 1870 lbf |
| Flat Load | 2712 lbs. |
| Thickness | 0.1" |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
| DFARS | Specialty Metals COTS-Exempt |
| Country of Origin | China |
NOTE：All other trademarks are the property of their respective owners.
All other trademarks mentioned herein are used for the purpose of compatibility description and product identification only. Lily Bearing is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.

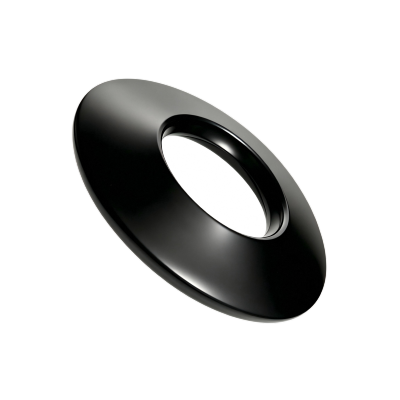

JHBDKEEB Springs are engineered to provide consistent spring force in environments where standard steel springs would succumb to oxidation, pitting, and structural failure. Designed for long-term durability, these disc springs are the first choice for applications involving moisture, salt spray, and aggressive chemical exposure.
Key Features & Engineering Benefits of JHBDKEEB Springs
- High Load, Small Deflection: Utilizing the classic Belleville geometry, these springs generate massive force in tight spaces where coil springs are impractical.
- Thermal Expansion Compensation: Maintains constant bolt tension and prevents loosening caused by thermal cycling in outdoor or industrial machinery.
- Extended Service Life: By selecting the correct corrosion-resistant grade, you reduce maintenance costs and prevent catastrophic system failure due to "Stress Corrosion Cracking" (SCC).
- Versatile Stacking: Our springs can be arranged in Parallel for increased load or Series for increased deflection, allowing for fully customizable spring curves.
Typical Applications of JHBDKEEB Springs
- Marine & Offshore: Subsea valves, deck equipment, and saltwater pumping systems.
- Food & Pharmaceutical: Equipment requiring frequent wash-downs with caustic cleaning agents.
- Chemical Processing: Agitators, reactors, and flange bolting in corrosive gas or liquid environments.
- Water Treatment: Filtration systems and heavy-duty flow control valves.
