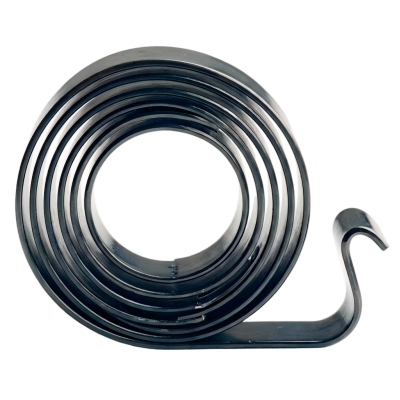

9293K56
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | JCJDKFG |
| Spring Type | Strip |
| Number of Mounting Holes | 1 |
| Extended Length | 39" |
| Width | 0.75" |
| OD | 1.19" |
| OD Tolerance | -0.12" to 0.12" |
| ID | 0.88" |
| ID Tolerance | -0.09" to 0.09" |
| Mounting Hole Dia | 0.196" |
| Material | 301 Stainless Steel |
| Force Type | Constant |
| Load | 5.94 lbf |
| Load Tolerance | -0.6 to 0.60 lbs. |
| Thickness | 0.012" |
| Useful Life | 3000 Cycles |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant |
| DFARS | Specialty Metals COTS-Exempt |
| Country of Origin | China |
| USMCA Qualifying | No |
