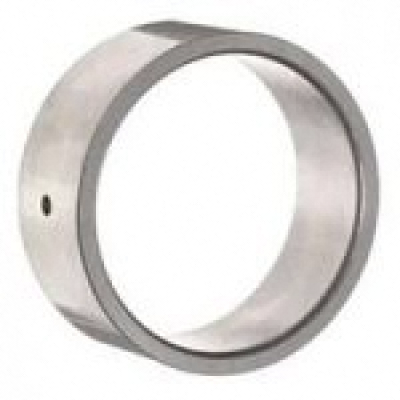

IR15X20X12-IS1-XL
| Part Number | IR15X20X12-IS1-XL |
Brand: LILY  | |
Equivalent: Schaeffler (INA) |
| System of Measurement | Metric |
| Series | IR-IS1 |
| Bore Dia | 15 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| Outer Dia | 20 mm |
| Outer Dia Tolerance | -0.012mm to 0 |
| Width | 12 mm |
| Width Tolerance | -0.12mm to 0 |
| Rmin | 0.3 mm |
| Material | Bearing Steel |
| Lubrication | Lubricated |
| RoHS | Compliant |
| Weight | 12.2 g |
| Number Of Lubrication Holes | 1 |
})
INTERCHANGE
The LILY bearing part series IR15X20X12-IS1-XL is a potential replacement for these common bearing part numbers.
LILY
INA
IKO
FAG
LIR15X20X12-IS1-XL
IR15X20X12
LRT 152012
JR 15X20X12
