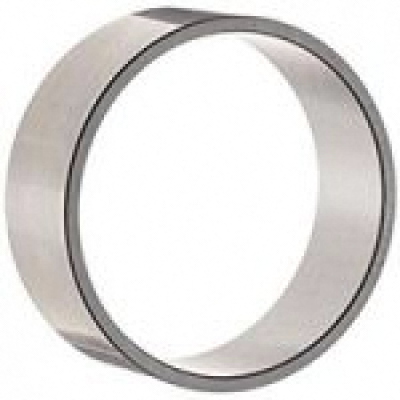

IR12X15X12.5-XL
| Part Number | IR12X15X12.5-XL |
Brand: LILY  | |
Equivalent: Schaeffler (INA) |
| System of Measurement | Metric |
| Series | IR |
| Bore Dia | 12 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| Outer Dia | 15 mm |
| Outer Dia Tolerance | -0.018mm to -0.004mm |
| Width | 12.5 mm |
| Width Tolerance | -0.12mm to 0 |
| Rmin | 0.3 mm |
| Material | Bearing Steel |
| Lubrication | Lubricated |
| RoHS | Compliant |
| Weight | 6.1 g |
})
INTERCHANGE
The LILY bearing part series IR12X15X12.5-XL is a potential replacement for these common bearing part numbers.
LILY
INA
IKO
FAG
LIR12X15X12.5-XL
IR12X15X12-5
LRT 121512
JR 12X15X12-5
