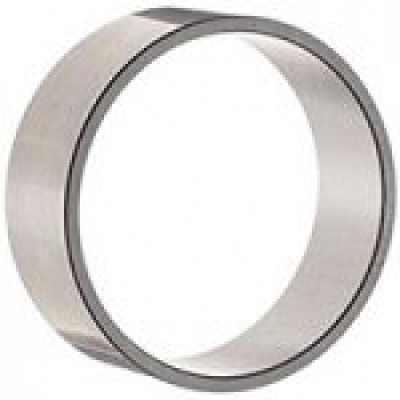

IR10X14X20-XL
$0.00
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Overview |
|
| Part Number | IR10X14X20-XL |
Brand: LILY  |
Interchangeable With: Schaeffler (INA) |
Characteristics |
|
| System of Measurement | Metric |
| Roller Bearing Type | Needle Roller |
| Series | IR |
Dimensions |
|
| Bore Dia | 10 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| Outer Dia | 14 mm |
| Outer Dia Tolerance | -0.018mm to -0.004mm |
| Width | 20 mm |
| Width Tolerance | -0.12mm to 0 |
| Chamfer | 0.3 mm |
Material |
|
| Material | Chrome Steel |
Properties |
|
| Lubrication | Lubricated |
| RoHS | Compliant |
| Weight | 11.5 g |
INTERCHANGE
The LILY Bearing part series IR10X14X20-XL is a potential replacement for these common bearing part numbers.
LILY
LIR10X14X20-XL
INA
IR10X14X20
IKO
LRT 101420
FAG
JR 10X14X20
NOTE：All other trademarks are the property of their respective owners.
All other trademarks mentioned herein are used for the purpose of compatibility description and product identification only. Lily Bearing is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.
