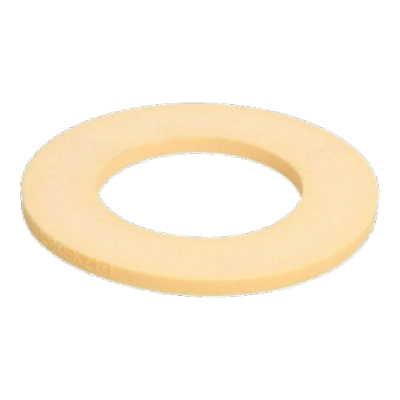

IJCANFH
Part Number | IJCANFH |
System of Measurement | Metric |
Bearing Type | Plain |
Plain Bearing Type | Thrust |
For Load Direction | Thrust |
For Shaft Diameter | 14mm |
Bore Dia | 14 mm |
Bore Dia Tolerance | 0 mm to 0.25 mm |
Outer Dia | 26 mm |
Outer Dia Tolerance | -0.25 mm to 0 |
Thickness | 1.5mm |
Thickness Tolerance | -0.05mm to 0mm |
Dynamic Thrust Load | 65 lbf |
Material | Thermoplastic Blend |
Lubrication | Not Required |
For Shaft Type | Round |
Temperature Range | -40° to 260° F |
RoHS | Compliant |
REACH | Compliant |
INTERCHANGE
The LILY bearing part series IJCANFH is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
IJCANFH
