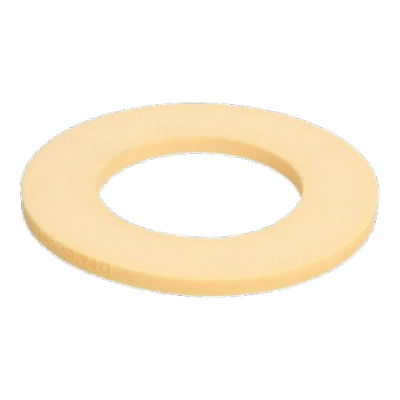

IJCANEE
| Part Number | IJCANEE |
| System of Measurement | Metric |
| Bearing Type | Plain |
| Plain Bearing Type | Thrust |
| For Load Direction | Thrust |
| For Shaft Diameter | 10 mm |
| Bore Dia | 10 mm |
| Bore Dia Tolerance | 0 mm to 0.25 mm |
| Outer Dia | 18 mm |
| Outer Dia Tolerance | -0.25 mm to 0 |
| Thickness | 1mm |
| Thickness Tolerance | -0.05mm to 0mm |
| Dynamic Thrust Load | 32 lbf |
| Material | Thermoplastic Blend |
| Lubrication | Not Required |
| For Shaft Type | Round |
| Temperature Range | -40° to 260° F |
| RoHS | Compliant |
| REACH | Compliant |
INTERCHANGE
The LILY bearing part series IJCANEE is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
IJCANEE
