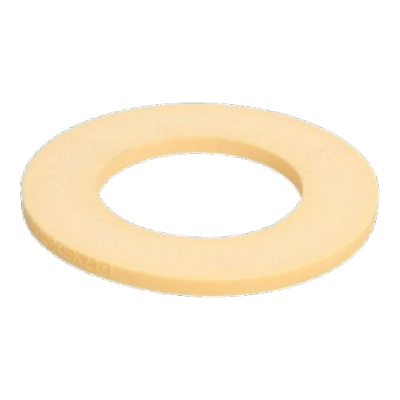

IJCANBF
| Part Number | IJCANBF |
| System of Measurement | Inch |
| Bearing Type | Plain |
| Plain Bearing Type | Thrust |
| For Load Direction | Thrust |
| For Shaft Diameter | 7/8" |
| Bore Dia | 0.875" |
| Bore Dia Tolerance | 0" to 0.01" |
| Outer Dia | 1 1/2" |
| Outer Dia Tolerance | -0.01" to 0" |
| Thickness | 0.0585" |
| Thickness Tolerance | -0.002" to 0" |
| Dynamic Thrust Load | 125 lbf |
| Material | Thermoplastic Blend |
| Lubrication | Not Required |
| For Shaft Type | Round |
| Temperature Range | -40° to 260° F |
| RoHS | Compliant |
| REACH | Compliant |
INTERCHANGE
The LILY bearing part series IJCANBF is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
IJCANBF
