HM926747-HM926719
| Part Number | HM926747-HM926719 |
Brand: LILY  | |
Equivalent: Timken |
| System of Measurement | Inch |
| Type | Bearing |
| Cone Part Number | HM926747 |
| Cup Part Number | HM926719 |
| Bearing Type | Roller |
| Roller Bearing Type | Tapered Roller |
| For Load Direction | Combined |
| Construction | Single Row |
| Seal Type | Open |
| Cups Type | Standard |
| Series | HM926700 |
| Bore Dia | 5" |
| Bore Dia Tolerance | +0.001" to 0 |
| Outer Dia | 9.4478" |
| Outer Dia Tolerance | +0.001" to 0 |
| Cone Width | 1.946" |
| Cone Width Tolerance | +0.003" to -0.01 |
| Cup Width | 1.5" |
| Cup Width Tolerance | +0.002" to -0.01 |
| Width | 2.125" |
| Width Tolerance | +0.014" to -0.01" |
| Cone Backface ToClear Radius | 0.14" |
| Cup Backface ToClear Radius | 0.130" |
| Cone Frontface Backing Diameter | 6.57" |
| Cone Backface Backing Diameter | 6.14" |
| Cup Frontface Backing Diameter | 8.64" |
| Cup Backface Backing Diameter | 8.03" |
| Cage Cone Frontface Clearance | 0.29" |
| Cage Cone Backface Clearance | 0.31" |
| Effective Center Location | 0.53" |
| Ring Material | Chrome Steel |
| Roller Material | Chrome Steel |
| Cage Material | Steel |
| Dynamic Radial Load | 132000 lbf |
| Static Radial Load | 151000 lbf |
| Dynamic Radial Rating(90 Million Revolutions)(C90) | 34200 lbf |
| Dynamic Thrust Rating(90 Million Revolutions)(Ca90) | 43100 lbf |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | Standard (Available in C3/C4/C5) |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 21.7 lb |
})

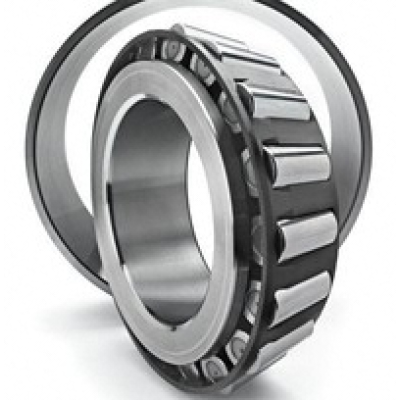

HM926747-HM926719 TS (Single Row Tapered Roller Bearings) (Imperial) consist of a tapered inner ring assembly and an outer ring. HM926747-HM926719 bore dia is 5". Its out dia is 9.4478". HM926747-HM926719 roller material is Chrome Steel. Its seal type is Open. The HM926747-HM926719 TS (Single Row Tapered Roller Bearings) (Imperial) can bear both radial and axial loads with ease and provides low friction during operation even under the most severe conditions.
Typical applications include:
Gearing Systems and Transmissions, Thermal Power Coal Transporters, Port Equipment, Rubber and other Industrial applications, Machine Tool Spindles, Gear Reducer, Automotive Drive Axle, Aircraft wheels, Agricultural Wheels, Tensioning Roller, Raking Machine, Single Row and Mining Equipment, Railroad Axle-box, etc.
General Selection Factors
Several factors must be considered for choosing tapered roller bearings. These factors include the roller material, design, shields and seals, cage, Annual Bearing Engineering Committee (ABEC) grade, radial clearance, and lubricant, etc.
