HM252310DW
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | HM252310DW |
Characteristics |
|
| System of Measurement | Inch |
| Roller Bearing Type | Tapered |
| Type | Cups |
| Cups Type | Standard |
| Series | HM252300 |
| ABEC Rating | ABEC-1 |
Dimensions |
|
| Outer Dia | 16.625" |
| Outer Dia Tolerance | +0.002" to 0 |
| Double Cup Width | 6.5" |
| Double Cup Width Tolerance | +0.002" to -0.01 |
| Cup Backface ToClear Radius | 0.06" |
| Cup Frontface Backing Diameter | 15.96" |
Material |
|
| Ring Material | Chrome Steel |
Performance |
|
| Temperature Range | -30° to 110 °C |
Properties |
|
| RoHS | Compliant |
| REACH | Compliant |

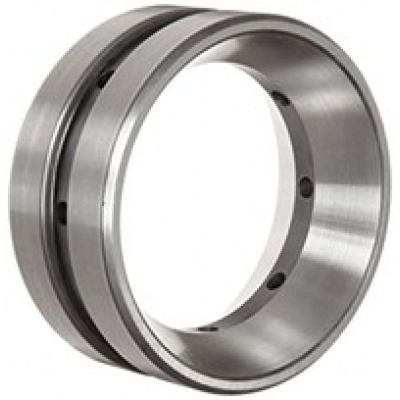

Design Features of HM252310DW Bearing
HM252310DW bearing features a two-piece design that houses a tapered roller bearing, allowing for effective load distribution and enhanced stability. HM252310DW outer dia is 16.625". Its double cup width is 6.5". This design enables the bearing to support both radial and axial loads, making it suitable for demanding applications.
What Benefits Can HM252310DW Bearing Provide?
- Effective Load Distribution: Its design allows for balanced support of both radial and axial loads, enhancing overall performance.
- Enhanced Stability: The two-piece construction improves stability, reducing the risk of misalignment during operation.
- High Durability: Built with robust materials, it offers a longer lifespan and reduced maintenance needs.
- Versatile Applications: Suitable for various industries, it can be used in heavy machinery, automotive, and industrial equipment.
What Can HM252310DW Bearing Be Used for?
- Automotive: Commonly found in wheel hubs, transmissions, and differential assemblies to support heavy loads.
- Heavy Machinery: Utilized in construction and agricultural equipment, such as excavators and tractors, where durability and load capacity are essential.
- Industrial Equipment: Used in gearboxes, conveyors, and other machinery that requires reliable performance under heavy loads.
- Mining Equipment: Suitable for harsh conditions, providing stability and longevity in demanding environments.
- Railroad Applications: Employed in train axles and wheel sets to ensure smooth operation and support significant weight.
