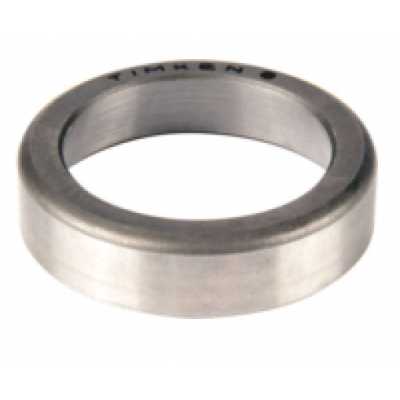

HM252310
| Part Number | HM252310 |
Brand: LILY  | |
Equivalent: Timken |
| System of Measurement | Inch |
| Type | Cups |
| Bearing Part Number | HM252343-HM252310 , HM252344-HM252310 , HM252347T-HM252310 , HM252348-HM252310 , HM252348WS-HM252310 , HM252349-HM252310 |
| Cups Type | Standard |
| Series | HM252300 |
| Outer Dia | 16.625" |
| Outer Dia Tolerance | +0.002" to 0 |
| Cup Width | 2.625" |
| Cup Width Tolerance | +0.002" to -0.01 |
| Cup Backface ToClear Radius | 0.13" |
| Cup Frontface Backing Diameter | 15.79" |
| Cup Backface Backing Diameter | 15.43" |
| Ring Material | Chrome Steel |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| RoHS | Compliant |
| REACH | Compliant |
})
