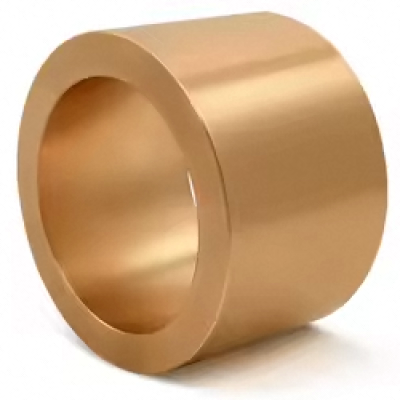

HJGFKIFJ
| Part Number | HJGFKIFJ |
| System of Measurement | Metric |
| Bearing Type | Plain |
| Plain Bearing Type | Sleeve |
| For Load Direction | Radial |
| For Shaft Diameter | 45mm |
| Bore Dia | 45 mm |
| Bore Dia Tolerance | -0.025 mm to 0.025 mm |
| For Housing ID | 55mm |
| Outer Dia | 55 mm |
| Outer Dia Tolerance | 0.051 mm to 0.076 mm |
| Length | 45mm |
| Length Tolerance | -0.127mm to 0.127mm |
| Dynamic Radial Load | 12600 lbf |
| Static Radial Load | 12600 lbf |
| Max Speed (X1000 rpm) | 0.03 |
| Material | 660 Leaded Bronze |
| Lubrication | Required |
| Lubrication Method | Grooved |
| For Shaft Type | Round |
| Shaft Mount Type | Slip Fit |
| Temperature Range | -350° to 450° F |
| RoHS | Compliant |
| REACH | Compliant |
INTERCHANGE
The LILY bearing part series HJGFKIFJ is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
HJGFKIFJ
