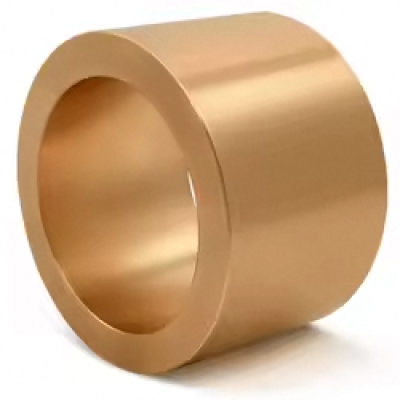

HJGFKGE
| Part Number | HJGFKGE |
| System of Measurement | Inch |
| Bearing Type | Plain |
| Plain Bearing Type | Sleeve |
| For Load Direction | Radial |
| For Shaft Diameter | 2" |
| Bore Dia | 2" |
| Bore Dia Tolerance | -0.001" to 0.001" |
| For Housing ID | 2 1/4" |
| Outer Dia | 2.252" |
| Outer Dia Tolerance | 0" to 0.001" |
| Length | 2 1/2" |
| Length Tolerance | -0.005" to 0.005" |
| Dynamic Radial Load | 17500 lbf |
| Static Radial Load | 17500 lbf |
| Max Speed (X1000 rpm) | 0.03 |
| Material | 660 Leaded Bronze |
| Lubrication | Required |
| Lubrication Method | Grooved |
| For Shaft Type | Round |
| Shaft Mount Type | Slip Fit |
| Temperature Range | -350° to 450° F |
| RoHS | Compliant |
| REACH | Compliant |
INTERCHANGE
The LILY bearing part series HJGFKGE is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
HJGFKGE
