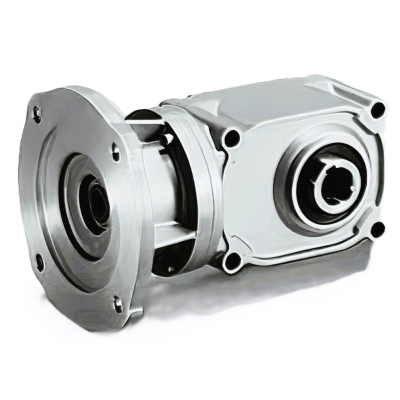

7660N28
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | HGGANCI |
Characteristics |
|
| System of Measurement | Inch |
| Bearing Type | Roller |
| Gear Type | Worm |
| Input Connection Type | Shaft Opening |
| Input Shaft Type | Keyed |
| Output Connection Type | Shaft |
| Output Shaft Type | Keyed |
| Shaft Orientation | Right Angle |
| Mounting Orientation | Any Angle |
| Input Shaft Rotation | Clockwise, Counterclockwise |
| Output Shaft Location | Right Hand/Left Hand |
| Number of Mounting Holes | 4 |
| Number of Output Shafts | 1 |
| For Motor Frame Size | NEMA 56C |
| Mounting Holes Thread Size | M8 |
| Environment | Damp, Dusty, High-Pressure Washdown, Sanitary, Washdown |
| Environmental Rating | IP69K |
Dimensions |
|
| Input Shaft Diameter | 0.625" |
| Input Shaft Keyway Width | 0.1875" |
| Input Shaft Keyway Depth | 0.0938" |
| Output Shaft Diameter | 1" |
| Output Shaft Length | 2.063" |
| Output Shaft Keyway Width | 0.25" |
| Output Shaft Keyway Depth | 0.0938" |
| Output Shaft Keyway Length | 1.25" |
| Overall Length | 9.49" |
| Overall Width | 7.56" |
| Overall Height | 7.06" |
| Center -to-Center Shaft Distance | 1.75" |
| Mounting Hole Thread Pitch | 0.0492" |
| Mounting Hole Center-to-Center Length | 4.2" |
| Mounting Hole Center-to-Center Width | 2.76" |
Material |
|
| Gear Material | Bronze |
| Worm Material | 304 Stainless Steel |
| Housing Material | 316 Stainless Steel |
| Output Shaft Material | 304 Stainless Steel |
Performance |
|
| Radial Load Capacity | 750 lbs |
| Efficiency | 70% @ 1750 rpm |
| Speed Ratio | 60:1 |
| Max Input Power | 0.53 |
| Max Output Torque | 807 in.-lbs. @ 1750 rpm |
| Max Input Speed (X1000 rpm) | 1750 |
| Max Output Speed (X1000 rpm) | 29 |
Properties |
|
| Lubrication | Lubricated |
| Lubricant | Synthetic Food-Grade Oil |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant |
| DFARS | Specialty Metals COTS-Exempt |
| Country of Origin | China |
| USMCA Qualifying | No |
