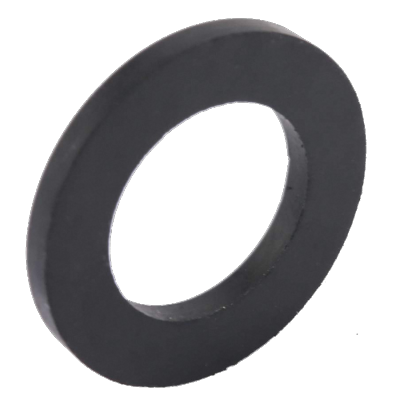

HDIANBD
| Part Number | HDIANBD |
| System of Measurement | Metric |
| Bearing Type | Plain |
| Plain Bearing Type | Thrust |
| For Load Direction | Thrust |
| For Shaft Diameter | 10 mm |
| Bore Dia | 10 mm |
| Bore Dia Tolerance | 0 to 0.25 mm |
| Outer Dia | 18 mm |
| Outer Dia Tolerance | -0.25 to 0.25 mm |
| Thickness | 2 mm |
| Thickness Tolerance | -0.127 to 0.127 mm |
| Dynamic Thrust Load | 420 lbf |
| Material | 863 Iron-Copper |
| Lubrication | Lubricated |
| Lubrication Method | Embedded |
| Lubricant | PTFE |
| For Shaft Type | Round |
| Temperature Range | -60° to 300° F |
| RoHS | Compliant |
| REACH | Compliant |
INTERCHANGE
The LILY bearing part series HDIANBD is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
HDIANBD
7380N13
