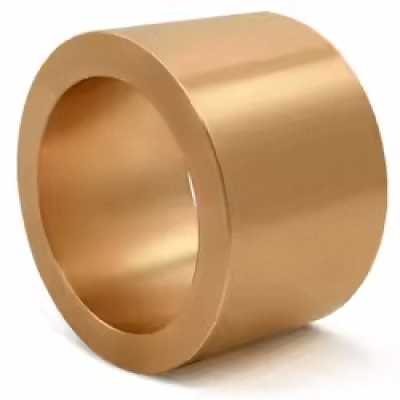

HAJFKEB
| Part Number | HAJFKEB |
| System of Measurement | Inch |
| Bearing Type | Plain |
| Plain Bearing Type | Sleeve |
| For Load Direction | Radial |
| For Shaft Diameter | 1/4" |
| Bore Dia | 0.251" |
| Bore Dia Tolerance | 0" to 0.001" |
| For Housing ID | 3/8" |
| Outer Dia | 0.376" |
| Outer Dia Tolerance | 0" to 0.001" |
| Length | 1/4" |
| Length Tolerance | -0.005" to 0.005" |
| Dynamic Radial Load | 125 lbf |
| Static Radial Load | 125 lbf |
| Max Speed (X1000 rpm) | 0.12 |
| Material | 841 Bearing Bronze |
| Lubrication | Lubricated |
| Lubrication Method | Embedded |
| Lubricant | SAE 20 Oil |
| For Shaft Type | Round |
| Shaft Mount Type | Slip Fit |
| Temperature Range | -75° to 300° F |
| RoHS | Compliant |
| REACH | Compliant |
INTERCHANGE
The LILY bearing part series HAJFKEB is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
HAJFKEB
