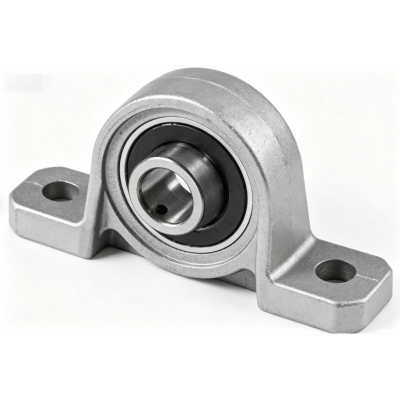

GGDFKDE
| Part Number | GGDFKDE |
| System of Measurement | Inch |
| Bearing Type | Ball |
| Alignment Style | Self Aligning |
| Housing Type | Base Mount |
| With End Seals | Yes |
| Bore Dia | 1.25" |
| Bore Dia Tolerance | Not Rated |
| Overall Length | 2 3/4" |
| Overall Height | 3 1/4" |
| Overall Width | 4" |
| Center Height | 1 3/4" |
| Center Height Tolerance | -0.005" to 0.005" |
| Base Thickness | 7/16" |
| Width | 4" |
| Dynamic Radial Load | 350 lbs |
| Bearing Material | Steel |
| Housing Material | Cast Iron |
| Ball Material | Steel |
| Temperature Range | - to 176° F |
| Lubrication | Required |
| RoHS | Compliant |
| REACH | Compliant |
| Diameter | 11/32" |
| Length | 2 3/4" |
| Number of | 4 |
| Replaceable Insert Bearing | No |
| Height | 3 1/4" |
| Center -to-Center, Length | 1 7/8" |
| Preload Adjustment | With Adjusting Screw |
| Center -to-Center, Width | 3" |
})
INTERCHANGE
The LILY bearing part series GGDFKDE is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
GGDFKDE
