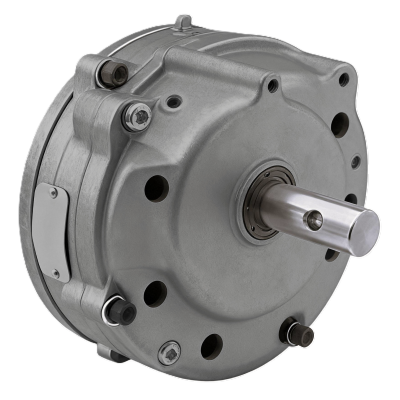

6481K699
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | GEIBKGJJ |
Characteristics |
|
| System of Measurement | Inch |
| Bearing Type | Ball |
| Gear Type | Spur |
| Input Connection Type | Shaft Opening |
| Input Shaft Type | Keyed |
| Output Connection Type | Shaft |
| Output Shaft Type | Round with Through Hole |
| Shaft Orientation | Parallel |
| Mounting Orientation | Any angle with the vent plug above the shaft |
| Input Shaft Rotation | Clockwise, Counterclockwise |
| Output Shaft Rotation | Same as Input |
| Number of Output Shafts | 1 |
| For Motor Frame Size | NEMA 56C |
Dimensions |
|
| Input Shaft Diameter | 0.625" |
| Input Shaft Keyway Width | 0.1875" |
| Input Shaft Keyway Depth | 0.0938" |
| Output Shaft Diameter | 0.875" |
| Output Shaft Length | 2.47" |
| Overall Length | 7" |
| Overall Width | 8.25" |
| Overall Height | 6.75" |
| Through Hole Diameter | 0.33" |
| Center -to-Center Shaft Distance | 1.19" |
Material |
|
| Gear Material | Steel |
| Housing Material | Aluminum |
| Output Shaft Material | Steel |
Performance |
|
| Radial Load Capacity | Not Rated |
| Efficiency | 98% @ 1750 rpm |
| Speed Ratio | 6.5:1 |
| Max Input Power | 1.25 |
| Max Output Torque | 286 in.-lbs. @ 1750 rpm |
| Max Input Speed (X1000 rpm) | 1750 |
| Max Output Speed (X1000 rpm) | 270 |
Properties |
|
| Lubrication | Required |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
| DFARS | Specialty Metals COTS-Exempt |
| Country of Origin | China |
| USMCA Qualifying | No |
