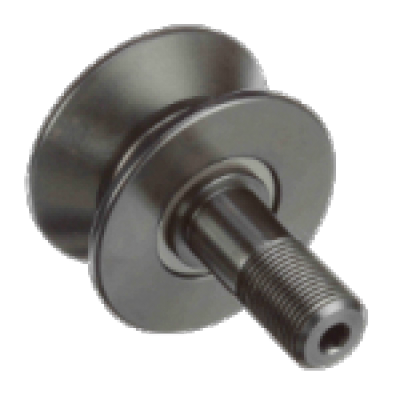

6318K87
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | GDBIKIH |
| System of Measurement | Metric |
| For Load Direction | Combined Radial and Thrust, Radial, Thrust |
| Roller Shape | V-Groove |
| Internal Construction | Ball Bearing |
| Type | Standard Stud |
| Mounting Method | Hex Hole |
| Seal Type | Sealed |
| Roller Material | Bearing Steel |
| Stud Material | Bearing Steel |
| Roller Dia | 60 mm |
| Roller Width | 31.4 mm |
| Stud Dia | 14 mm |
| Stud Length | 40 mm |
| Thread Size | M14 |
| Thread Length | 26 mm |
| Thread Pitch | 2 mm |
| Shoulder Dia | 18 mm |
| Shoulder Length | 1.6 mm |
| Groove Center | 15.7 mm |
| V Point Diameter | 40 mm |
| Max Speed | 0 |
| Static Radial Load | 1100 lbf |
| Dynamic Radial Load | 1050 lbf |
| Static Thrust Load | 680 lbf |
| Max Temp | 225 °F |
| With Seal | Yes |
| Lubricant Type | Grease |
| RoHS | RoHS Compliant |
| REACH | REACH Compliant |
