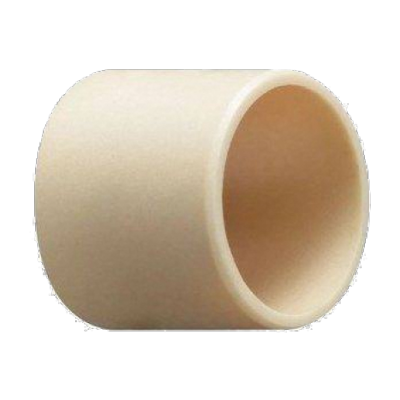

GCJEKH
| Part Number | GCJEKH |
| System of Measurement | Inch |
| Bearing Type | Plain |
| Plain Bearing Type | Sleeve |
| For Load Direction | Radial |
| For Shaft Diameter | 1/2" |
| Bore Dia | 0.502" |
| Bore Dia Tolerance | 0" to 0.006" |
| For Housing ID | 3/4" |
| Outer Dia | 0.751" |
| Outer Dia Tolerance | 0" to 0.006" |
| Length | 1" |
| Length Tolerance | -0.01" to 0.01" |
| Dynamic Radial Load | 95 lbf |
| Static Radial Load | 95 lbf |
| Max Speed (X1000 rpm) | 0.12 |
| Filler Material | MDS |
| Material | Nylon Plastic |
| Lubrication | Not Required |
| For Shaft Type | Round |
| Shaft Mount Type | Slip Fit |
| Temperature Range | -40° to 170° F |
| RoHS | Compliant |
| REACH | Compliant |
INTERCHANGE
The LILY bearing part series GCJEKH is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
GCJEKH
