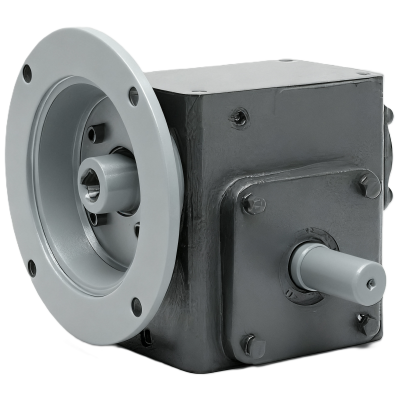

5887K87
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | FIIHKIH |
Characteristics |
|
| System of Measurement | Inch |
| Bearing Type | Roller |
| Gear Type | Worm |
| Input Connection Type | Shaft Opening |
| Input Shaft Type | Keyed |
| Output Connection Type | Shaft |
| Output Shaft Type | Keyed |
| Shaft Orientation | Right Angle |
| Mounting Orientation | Shaft parallel to floor |
| Input Shaft Rotation | Clockwise, Counterclockwise |
| Number of Output Shafts | 1 |
| For Motor Frame Size | NEMA 56C |
| Includes | Key Stock |
Dimensions |
|
| Input Shaft Diameter | 0.625" |
| Input Shaft Keyway Width | 0.1875" |
| Input Shaft Keyway Depth | 0.0938" |
| Output Shaft Diameter | 1" |
| Output Shaft Length | 2.09" |
| Output Shaft Keyway Width | 0.25" |
| Output Shaft Keyway Depth | 0.125" |
| Output Shaft Keyway Length | 1.25" |
| Overall Length | 8.125" |
| Overall Width | 7.5625" |
| Overall Height | 7.25" |
| Center -to-Center Shaft Distance | 2.06" |
Material |
|
| Gear Material | Bronze |
| Worm Material | Hardened Steel |
| Housing Material | Iron |
| Output Shaft Material | Hardened Steel |
Performance |
|
| Radial Load Capacity | 700 lbs |
| Max Output Torque | 826 in.-lbs. @ 1750 rpm |
| Efficiency | 69% @ 1750 rpm |
| Speed Ratio | 60:1 |
| Max Input Power | 0.5 |
| Max Input Speed (X1000 rpm) | 3600 |
| Max Output Speed (X1000 rpm) | 60 |
Properties |
|
| Lubrication | Required |
| RoHS | Not Compliant |
| REACH | Not Compliant |
| DFARS | Specialty Metals COTS-Exempt |
| Country of Origin | China |
| USMCA Qualifying | No |
