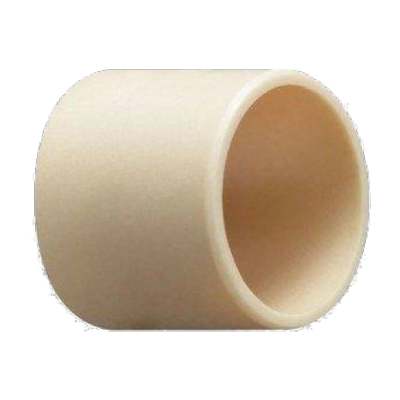

FHHIFKFI
| Part Number | FHHIFKFI |
| System of Measurement | Inch |
| Bearing Type | Plain |
| Plain Bearing Type | Sleeve |
| For Load Direction | Radial |
| For Shaft Diameter | 3/4" |
| Bore Dia | 0.754" |
| Bore Dia Tolerance | 0" to 0.011" |
| For Housing ID | 1" |
| Outer Dia | 1.005" |
| Outer Dia Tolerance | 0" to 0.005" |
| Length | 1 1/2" |
| Length Tolerance | -0.005" to 0.005" |
| Dynamic Radial Load | 190 lbf |
| Static Radial Load | 190 lbf |
| Max Speed (X1000 rpm) | 0.06 |
| Material | UHMW Plastic |
| Lubrication | Not Required |
| For Shaft Type | Round |
| Shaft Mount Type | Slip Fit |
| Temperature Range | -200° to 180° F |
| RoHS | Compliant |
| REACH | Compliant |
INTERCHANGE
The LILY bearing part series FHHIFKFI is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
FHHIFKFI
