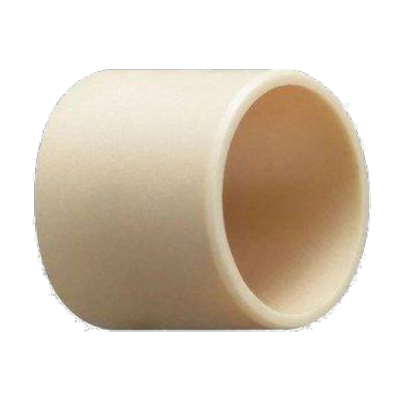

FHHIFKEC
| Part Number | FHHIFKEC |
| System of Measurement | Inch |
| Bearing Type | Plain |
| Plain Bearing Type | Sleeve |
| For Load Direction | Radial |
| For Shaft Diameter | 5/16" |
| Bore Dia | 0.3145" |
| Bore Dia Tolerance | 0" to 0.008" |
| For Housing ID | 7/16" |
| Outer Dia | 0.4405" |
| Outer Dia Tolerance | 0" to 0.003" |
| Length | 1/2" |
| Length Tolerance | -0.005" to 0.005" |
| Dynamic Radial Load | 31 lbf |
| Static Radial Load | 31 lbf |
| Max Speed (X1000 rpm) | 0.12 |
| Material | UHMW Plastic |
| Lubrication | Not Required |
| For Shaft Type | Round |
| Shaft Mount Type | Slip Fit |
| Temperature Range | -200° to 180° F |
| RoHS | Compliant |
| REACH | Compliant |
INTERCHANGE
The LILY bearing part series FHHIFKEC is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
FHHIFKEC
