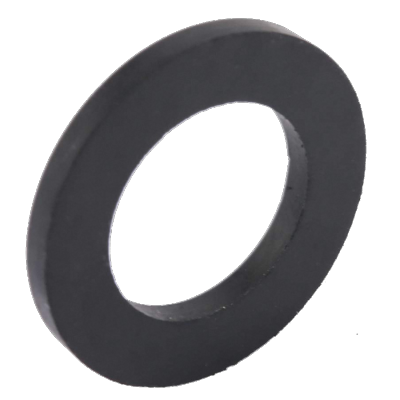

FEDFTH
Part Number | FEDFTH |
System of Measurement | Inch |
Bearing Type | Plain |
Plain Bearing Type | Thrust |
For Load Direction | Thrust |
For Shaft Diameter | 1/4" |
Bore Dia | 0.25" |
Bore Dia Tolerance | -0.004" to 0.006" |
Outer Dia | 5/8" |
Outer Dia Tolerance | -0.016" to 0.004" |
Thickness | 1/16" |
Thickness Tolerance | -0.005" to 0.005" |
Dynamic Thrust Load | 450 lbf |
Material | 863 Iron-Copper |
Lubrication | Lubricated |
Lubrication Method | Embedded |
Lubricant | SAE 20 Oil |
For Shaft Type | Round |
Temperature Range | -75° to 300° F |
RoHS | Compliant |
REACH | Compliant |
INTERCHANGE
The LILY bearing part series FEDFTH is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
FEDFTH
