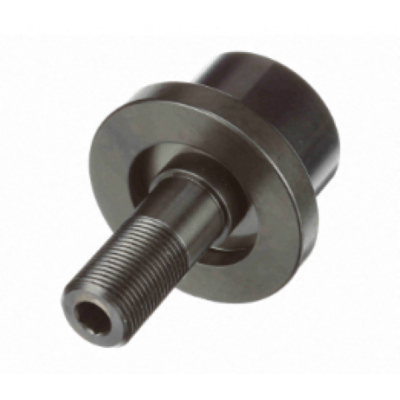

FCF 2
| Part Number | FCF 2 |
Brand: LILY  | |
Equivalent: McGill |
| System of Measurement | Inch |
| For Load Direction | Radial |
| Roller Shape | Flanged |
| Internal Construction | Ball Bearing |
| Type | Standard Stud |
| Mounting Method | Hex Hole |
| Seal Type | Sealed |
| Platform | Trakrol |
| Roller Material | Bearing Steel |
| Roller Dia | 2" |
| Roller Width | 1.6875" |
| Stud Dia | 0.875" |
| Stud Length | 2" |
| Threads | 7/8-14 UNF-2A |
| Minimum Thread Length | 1-1/8" |
| Shoulder Dia | 1" |
| Shoulder Length | 0.06" |
| Flange Dia | 2.6875" |
| Flange Thickness | 0.59375" |
| Hex Socket | 0.375" |
| Clamping Torque | 750 lbf |
| Max Speed | 1400 |
| Static Radial Load | 2000 lbf |
| Dynamic Radial Load | 3490 lbf |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 1.75 LB |
})
