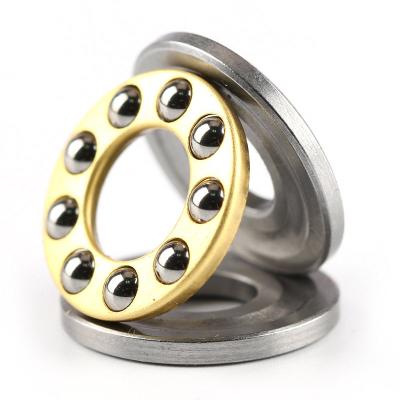

F9-20M
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | F9-20M |
Characteristics |
|
| System of Measurement | Metric |
| Bearing Type | Ball |
| Seal Type | Open |
| Inner Ring Type | Standard |
| Washers Type | grooved raceway |
| For Load Direction | Thrust |
| Ball Qty | 8 |
Dimensions |
|
| Bore Dia | 9 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| Outer Dia | 20 mm |
| Outer Dia Tolerance | -0.008mm to 0 |
| Width | 7 mm |
| Width Tolerance | -0.12mm to 0 |
| Ball Dia | 3.175 mm |
| Outer Dia Shaft Washer | 19.8 mm |
Material |
|
| Ring Material | Chrome Steel |
| Ball Material | Chrome Steel |
| Cage Material | Brass |
Performance |
|
| Dynamic Thrust Load | 755 lbf |
| Static Thrust Load | 675 lbf |
| Max Speed (X1000 rpm) | 12 |
| Temperature Range | -30° to 110 °C |
Properties |
|
| Lubrication | Required |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 9.9 g |
