F6807ZZ

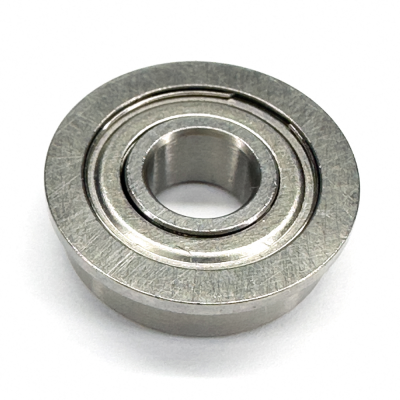

F6807ZZ Flanged Ball Bearings
Price $ 9.68
Part Number F6807ZZ
System of Measurement Metric
Bearing Type Ball
Ball Bearing Type Flanged
For Load Direction Radial
Construction Single Row
Seal Type Shielded
Bore Dia 35 mm
Bore Dia Tolerance -0.008mm to 0
Outer Dia 47 mm
Outer Dia Tolerance -0.008mm to 0
Width 7 mm
Width Tolerance -0.12mm to 0
Flange Outer Dia 50.0 mm
Flange Thickness 1.5 mm
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Shield Material 300 Series Stainless Steel
Dynamic Radial Load 4729 N
Static Radial Load 3821 N
Max Speed (X1000 rpm) 13
Max Speed (Oil) (X1000 rpm) 16
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110°C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.002mm to 0.013mm
RoHS Compliant
Ball Qty 19
Ball Size 3.500 mm
Weight 34.7 g
More Technical Information
F6807ZZ Flanged Ball Bearings cad drawing

Request a Quote

*
*

F6807ZZ flanged ball bearings have a lip extension on the outer ring. F6807ZZ bore dia is 35 mm. Its out dia is 47 mm. F6807ZZ ball material is 52100 Chrome steel. Its seal type is Shielded. The F6807ZZ flanged ball bearings can bear heavy radial loads and moderate thrust loads in both directions.

Typical applications include:

Food Processing Machinery, Conveyors, Material Handling, Belt Drives in HVAC, Textile Machines, Baggage Systems, Medical Processing, Scanner Motors, Stepping Motors, Rotary Encoders, Card Readers, etc.

General Selection Factors

Several factors must be cons572ered for choosing flanged ball bearings. These factors include the ring material, design, shields and seals, cage, Annual Bearing Engineering Committee (ABEC) grade, radial play, and lubricant, etc.
