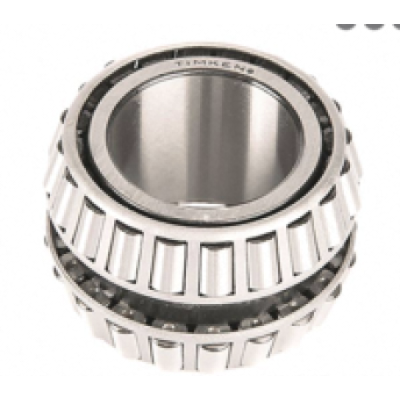

EE823103D
| Part Number | EE823103D |
| System of Measurement | Inch |
| Type | Cones |
| Bearing Part Number | EE823103D-823175 |
| Bearing Type | Roller |
| Roller Bearing Type | Tapered Roller |
| For Load Direction | Combined |
| Construction | Double Row |
| Seal Type | Open |
| Series | 823000 |
| Bore Dia | 10.25" |
| Bore Dia Tolerance | +0.001" to 0 |
| Double Cone Width | 7.75" |
| Double Cone Width Tolerance | +0.003" to -0.01 |
| Cone Backface ToClear Radius | 0.25" |
| Cone Frontface Backing Diameter | 11.633" |
| Cone Backface Backing Diameter | 11.633" |
| Cage Cone Frontface Clearance | 0.11" |
| Static Radial Load | 601000 lbf |
| Roller Material | Chrome Steel |
| Cage Material | Pin-Type |
| Dynamic Radial Rating(90 Million Revolutions) | 94000 lbf |
| Dynamic Radial Rating(Two Row 1 Million Revolutions) | 631000 lbf |
| Dynamic Radial Rating(1 Million Revolutions) | 362000 lbf |
| Dynamic Thrust Rating(90 Million Revolutions) | 87800 lbf |
| Dynamic Radial Rating(Two Row 90 Million Revolutions) | 164000 lbf |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | Standard (Available in C3/C4/C5) |
| RoHS | Compliant |
| REACH | Compliant |
})
