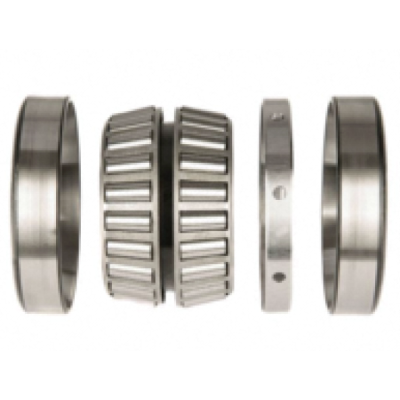

EE291202D-291749 TDI (Two-Row Double Inner Race) (Imperial)
EE291202D-291749 TDI (Two-Row Double Inner Race) (Imperial)
Price $ 0.00
Part Number EE291202D-291749
Type Bearing
Cone Part Number EE291202D
Cup Part Number 291749
System of Measurement Inch
Bearing Type Roller
Roller Bearing Type Tapered Roller
For Load Direction Combined Radial and Thrust
Construction Double Row
Seal Type Open
Cups Type Standard
Series 290000
Bore Dia 12"
Bore Dia Tolerance +0.025" to 0
Outer Dia 17.5"
Outer Dia Tolerance +0.051" to 0
Double Cone Width 4.625"
Double Cone Width Tolerance +0.076" to -0.254"
Cup Width 1.5625"
Cup Width Tolerance +0.051" to -0.254"
Bearing Width Across Cups 4.3749"
Bearing Width Across Cups Tolerance +0.356" to-0.254"
Cone Backface ToClear Radius 0.31"
Cup Backface ToClear Radius 0.13"
Cup Frontface Backing Diameter 13"
Cup Backface Backing Diameter 16.34"
Dynamic Radial Load 347000 lbf
Ring Material 52100 Chrome Steel
Roller Material 52100 Chrome Steel
Cage Material Steel
Dynamic Radial Rating (One Row 90 million revolutions) 51700 lbf
Dynamic Thrust Rating (90 million revolutions) 33400 lbf
Dynamic Radial Rating (Two Row 90 million revolutions) 90000 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 115.90 lb
